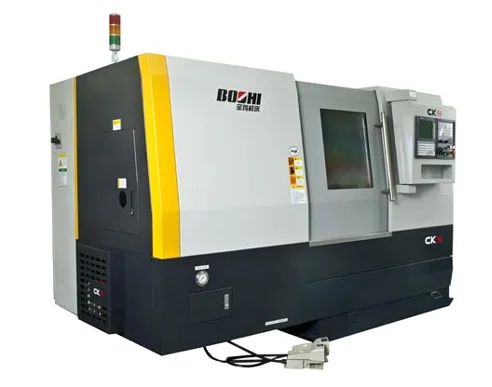

CK-40 turning center slant bed lathe cnc turning

FOB Reference Price:Get Latest Price
US $12,000-15,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Turning Center
CNC or Not:
CNC
Automatic Grade:
Automatic, CNC
Max. Swing Diameter:
400mm
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
www.ycjixie.com
Model Number:
CK-40
Voltage:
380V,220V
Power(W):
5.5KW
Dimension(L*W*H):
2300x1100x1650mm
Weight:
2600KG
Certification:
CE
Precision:
Precision
Processing Types:
Metal
Workpiece and Weight:
Instrument Machine Tool
Controlling Mode:
CNC
Machine Type:
Lathe Machine CNC
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
50 Set/Sets per Month CK36L turning center slant bed lathe cnc turning
Packaging & Delivery
Packaging Details
wood packing for CK40 turning center slant bed lathe cnc turning
Port
shanghai
Lead Time :
60 days
Video Description



CK-40 turning center slant bed lathe cnc turning



MAJOR SPECIFICATIONS



Item

Unit

CK30

CK35

CK40

CK50

Capacity

Max. swing over bed

mm

Φ300

Φ350

Φ400

Φ500



Max. swing over slide

mm

Φ120

Φ80

Φ260

Φ320



Max. turning length

mm

300

250

400

500



Max. bar dia.

mm

Φ41

Φ41

Φ42

Φ51

Spindle

Hydraulic chuck dia.

mm

Φ160

Φ130

Φ165

Φ210



Spindle nose



A2-5

A2-5

A2-5

A2-6







(GB/

(GB/

(GB/

(GB/







T5900.1)

T5900.1)

T5900.1)

T5900.1)



Spindle thru-hole

mm

Φ30

Φ30

Φ57

Φ62



Spindle speed

r/min

4200

4500

70-3000

60-2250



Power of main motor

kW

4

5.5

7.5

15

Tailstock

Quill dia./travel

mm





Φ70/80

Φ90/100



Quill taper hole

MT No.





4

5

Carriage

Slant angle

DEG

45°

45°

45°

45°



Travel X/Z

mm

280/320

250/250

165/410

210/550



Rapid traverse X/Z

m/min

 12/16

 12/16

 12/16

 12/16



Number of station



Gang tools

Gang tools

8/12

8/12



Tool size (turning/boring)

mm

20×20/Φ32

20×20/Φ32

20×20/Φ32

25×25/Φ40

Others

Power source

kVA

35

35

35

35



Size

mm

2000x1700x1600

3200x1700x1910

2370x1670x1970

2850x1810x1850



Gross weight

kg

2000

2200

3000

4500



Optional Accessories

1.8 position motor-driven hydraulic turret.

2.Pneumatic chuk and hydraulic chuck.

3.Pneumatic tailstock and hydraulic tailstock

4.A.C.spindle servo motor(The speed can reach 6000rpm)



Straight line rail

Casing base with slanting bed, strong rigidity, high precision and high speed automatic lubrication system and totally closed athe encloser can be fix with Siemens and Fanuc controlling system or other domestic CNC systems can be outfitted with hydraulic chuck and hydraulic
