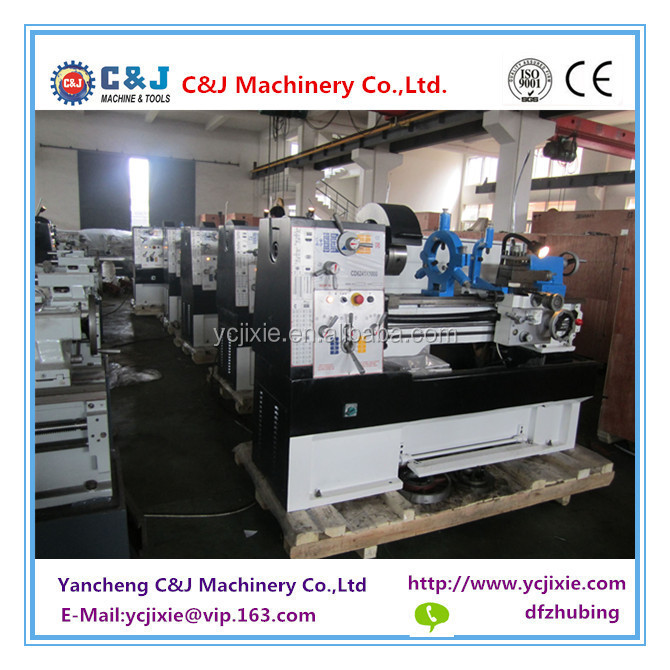

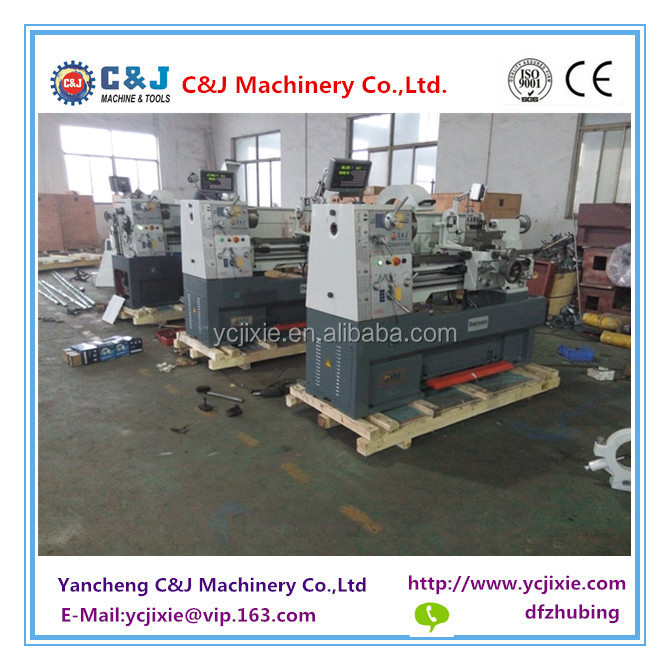

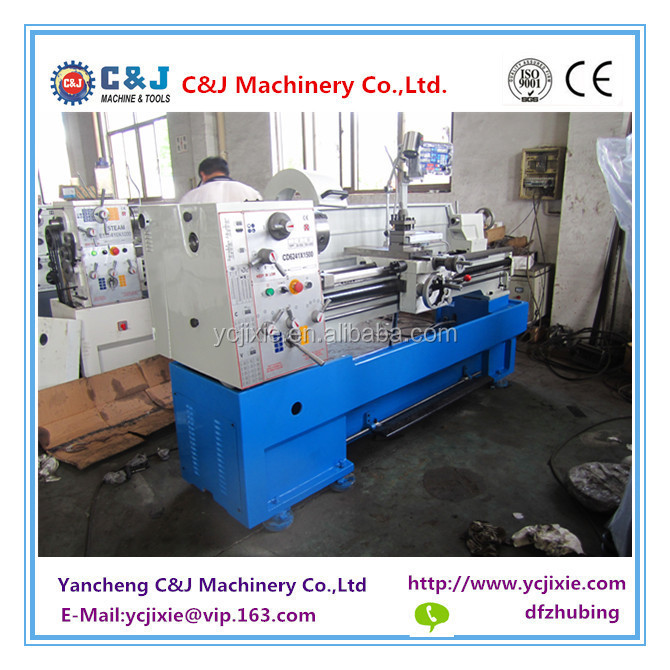

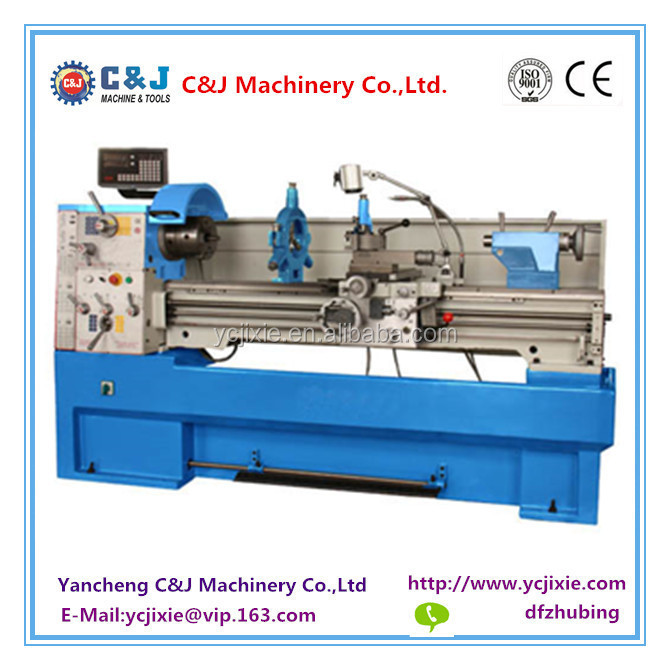

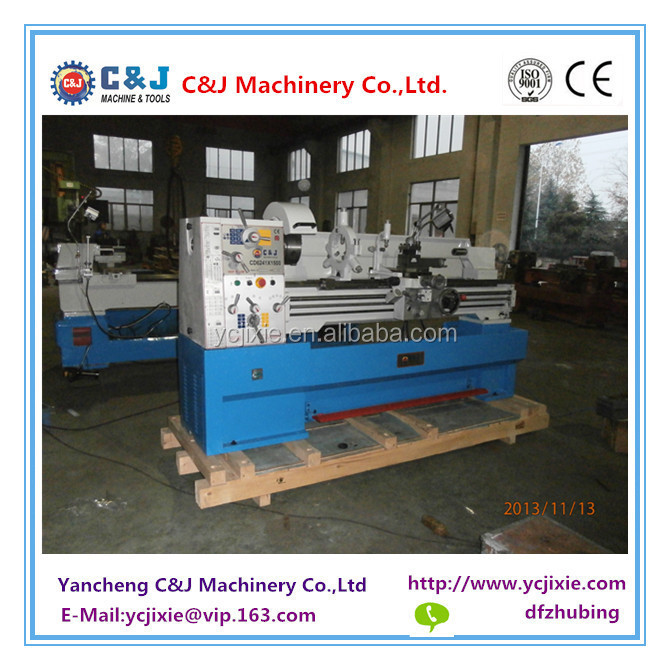

CM6241 Precision Gear head Lathe Machine

FOB Reference Price:Get Latest Price
US $3,000-9,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
CD6241 CM6241
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Automatic Grade:
Manual
Max. Swing Diameter:
410mm
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
YANCHENG C&J MACHINE TOOLS
Voltage:
110/220/380/400 V/3P
Power(W):
2.8/3.3KW
Dimension(L*W*H):
2060x900x1640mm
Weight:
1550kgs
Certification:
CE;ISO90001
Max.swing over bed:
410mm
Max.swing over gap:
580mm
Max.turning dia.over cross slide:
255mm
Max.length to be turned:
750 1000mm
Speed range:
45-1800rpm
Spindle bore dia:
52mm
After-sales Service Provided:
Overseas third-party support available
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Packaging Details
china high precision heavey duty lathe CD6241 CM6241Dwooden case, plastic cover inside
Port
shanghai or nantong port

CM6241 Precision Gear head Lathe Machine CD6241 CM6241

Product Description

Feature:
Universal revolver centre lathe CD6241
1.1500mm D.B.C AVAILABLE
2.WIDER BED WIDTH 250
3.BIG SPINDLE BORE 52

Main specification
Model

CD6241/1000/1500
CM6241/1000/1500

Max swing over bed



Φ360mm/ Φ410mm

Max swing over gap diameter

540mm or Φ580mm*190

Max swing over cross slide

Φ255mm

Height of center

185mm or 205mm

Distance between centers

1000mm/1500mm

Width of bed

250mm

Max size of tool post

20×20mm

Travel of cross slide

210mm

Travel of top slide

140mm

Dia. of spindle bore

Φ52mm

Taper of spindle bore

MT6

Spindle speed number

16

Spindle speed range

45-1800rpm

Thread imperial pitches

2-72T.P.I(45Nos)

Thread metric pitches

39 Nos(0.2-14mm)

Inch threads range

45 Nos(72-2TPI)

Longitudinal feed metric

17 Nos(0.05-1.7mm/rev)

Longitudinal feed imperial

17 Nos(0.02-0.067”/rev)

Cross feed metric

17 Nos(0.025-0.85mm/rev)

Cross feed imperial

17 Nos(0.002-0.335“/rev)

Module pitch range

18 Nos(0.3-3.5MP)

Diameteral pitch range

21 Nos(8-44DP)

Tailstock quill diameter

Φ50mm

Store of tail stock sleeve

120mm

Taper of tail stock sleeve

MT4

Spindle drive motor

4P/8P, 3PH 3.3KW/2.2kw

or 4.5kw/3kw

Coolant pump motor

4P, 3PH 90W

Net weight

1550/1600kg

Gross weight

1750/1800kg

Dimension(L×W×H)

2560×900×1640mm





Universal revolver centre lathe CD6241 CM6241





STANDARD ACCESSORIES
3-Jaw chuck (160mm)
Change Gears set
M. T. #3 dead centers
Tool box with tools
Oil gun
M. T. 5/3 sleeve
Foot stands
Splash guard
Oil tray



OPTIONAL  ACCESSORIES
Drill chuck with arbor
Work light
Foot brake system
Coolant system
Leadscrew guard
4-Jaw chuck (200mm)
Face plate
Steady rest
Follow rest
M. T. #3 live center
Localizer
Clutch for feed rod
Quick change tool post
